1. Experimental Evidence: Millimeter Size Makes the Difference

A large-scale plastic chemical recycling project in Guangdong conducted comparative trials on the same batch of mixed PE/PP waste. Only the shred size was varied — yet the resulting pyrolysis efficiency differed dramatically.

 Data compiled from multiple sources, including project disclosures from Guangdong Dongyue Chemical, catalytic conversion research published in Nature Chemistry (2024), photocatalytic oxidation studies in CCS Chemistry (2025), the White Paper on Waste Plastic Chemical Circularity (2025), and verification testing by SGS.

Behind these figures lies a harsh industrial reality:

Of the 400 million tonnes of plastic waste generated each year globally, only about 20% achieves high-value recycling. Among the remaining low-efficiency facilities, roughly 60% suffer from one core issue — uncontrolled particle size.

• Coarse 100 mm fragments reduce advanced pyrolysis plants to inefficient reactors

• 50 mm material enables basic conversion but leads to high catalyst loss and energy consumption

• Only controlled fine shredding below 30 mm consistently unlocks optimal chemical recycling performance




2. Why is <30 mm the “Golden Size”? Four Fundamental Drivers

1) The “Contact Revolution” in Pyrolysis

Catalytic pyrolysis efficiency depends heavily on the contact surface between polymer and catalyst.

Material below 30 mm provides 6–8× greater specific surface area than 100 mm fragments

It allows homogeneous reactor packing, preventing uneven carbonisation or over-cracking.

Studies on polyethylene conversion show that doubling catalyst-reactant contact can reduce reaction temperature by ~60 °C, cut energy consumption by ~30%.

Industry experience indicates that <30 mm feedstock increases active-site utilisation in advanced catalysts from ~45% to nearly 90%, pushing yields beyond 90%

2) The Industrial Throughput Equation

Fine size alone is not valuable unless combined with throughput.

Traditional lines producing ~50 mm output typically handle only ~50 t/day and show wide particle deviation (±15 mm).

By contrast, modern high-capacity fine shredding systems — such as industrial single-shaft solutions can deliver:

·continuous processing of 10–20 t/h

·95% compliance with the 30 mm target size

·~200 t/day throughput

·direct compatibility with plants at the 10-kt scale and above

HARDEN’s fine shredders achieve this through:

✅ High-torque drives capable of handling rigid HDPE blocks, films, and mixed municipal plastics

✅ Optimized transmission systems and low-resistance rotors that reduce energy use

✅Precision knife geometry and controlled rotor speeds that prevent both under- and over-shredding

✅ The resulting homogeneous output improves downstream sorting, pelletising, and chemical conversion performance.

3) Unlocking the Value of “Urban Mining.”

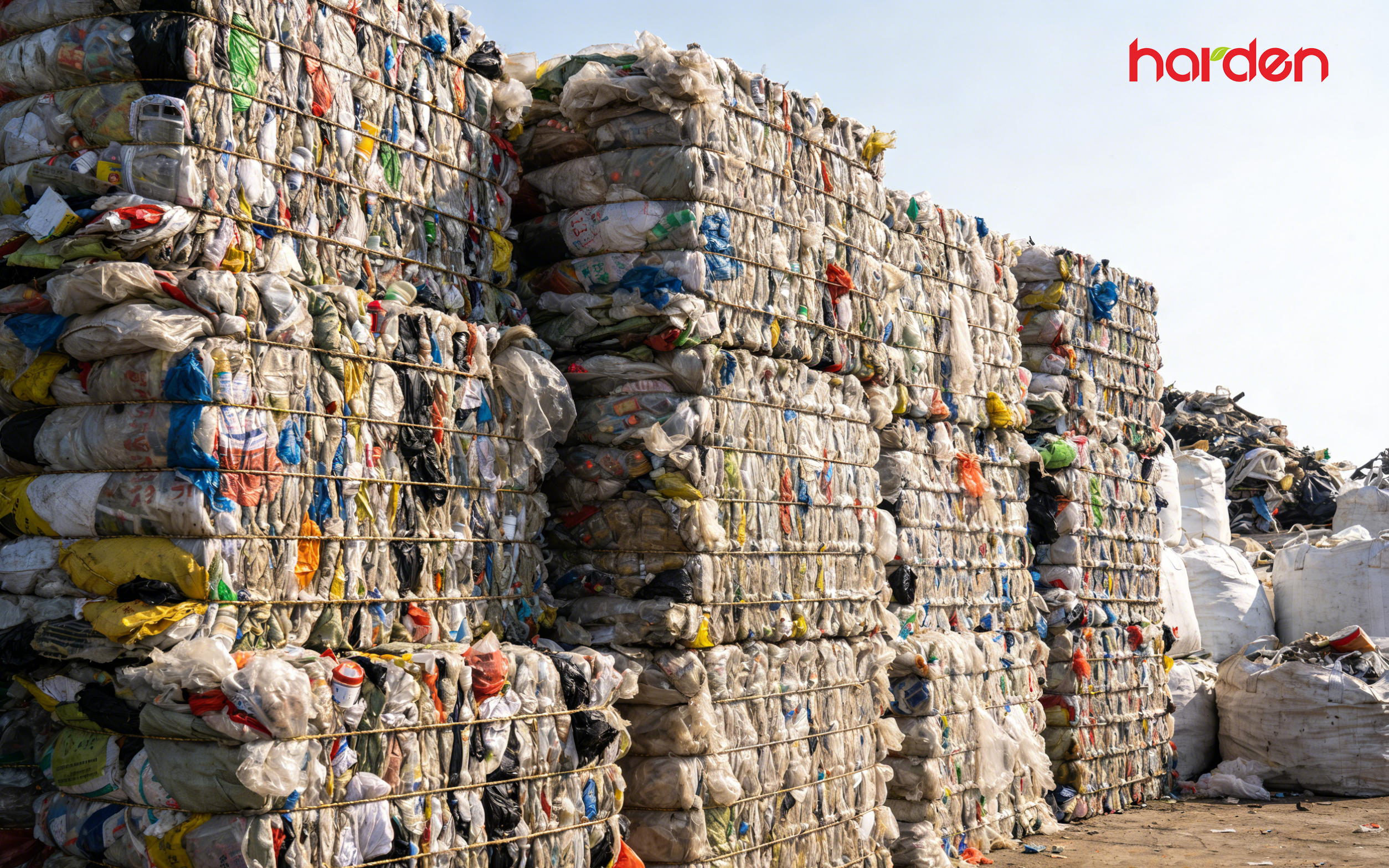

Low-value plastics, such as shopping bags, takeaway containers, agricultural films, or appliance housings, have long been considered difficult residues.

Controlled fine shredding below 30 mm changes this:

Municipal plastic pathway:

<30 mm feed → catalytic pyrolysis → C4–C12 gasoline fractions (RON ≈ 88) comparable to commercial fuel

Industrial plastic pathway:

precision shredding + AI sorting → high-purity PET flakes (5–10 mm) → fibre-grade feedstock for automotive interiors and textiles

Industrial verification shows that controlled fine shredding can support one-step chemical recycling routes delivering:

• Product yields above 92%

• Substitution of tens of thousands of tonnes of crude oil annually

• Substantial CO₂ emission reductions

4) Defining the Optimal Pre-treatment Range for Chemical Recycling

Many operators assume that smaller particles always improve performance.

Industrial practice shows this is incorrect — there is a defined optimal range.

Below ~5 mm, dust generation increases significantly (>50 mg/m³),

raising environmental risks and filtration costs.

Ultrafine particles also promote coking and pipe blockages during pyrolysis.

Compared with 5 mm shredding, a 30 mm target can reduce:

shredding energy demand per tonne by ~40%

equipment wear by ~55%

The national standard, Technical Specification for Evaluation of Recycled Plastic Products, explicitly recommends a 10–30 mm feedstock size range for chemical recycling, reflecting the practical optimum identified by industry.

Conclusion

When we marvel at the ability of plastic waste to become fuel or fibre, we often overlook the hidden enabler — industrial fine shredding.

Controlling particle size around 30 mm may appear to be a simple technical parameter.

In reality, it is the pivotal link that connects low-value plastic waste to high-value circular feedstock.

It enables:

Raise pyrolysis efficiency from ~68% to over 90%

Reduce processing cost per tonne by up to 40%

Transform the theoretical value of “urban mines” into an industrial reality.
