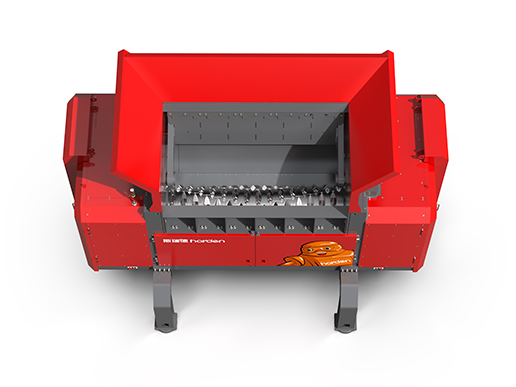

SG3000MP-俯视
Shredder

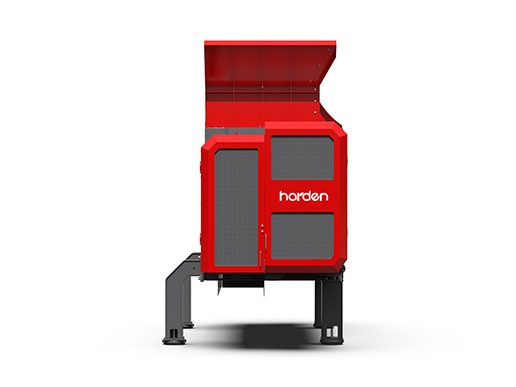

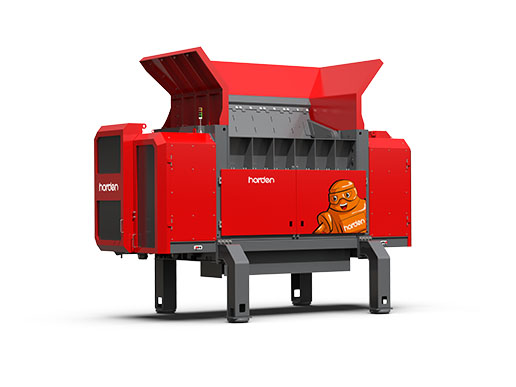

One-Step Shredder-SG 3000MP

The SG3000MP is an integrated shredder engineered for processing various types  of solid waste under complex operating conditions. It features a robust structural  design, high-torque output, and an advanced cutting system, ensuring finer, more  uniform, and higher-capacity output.


These enhancements improve shredding  efficiency while optimizing operational reliability.


What Distinguishes The
One-Step Shredder

What distinguishes
40-130mm
Particle Size
2*200kw
Power Rating
6406*3253*4988(L*W*H)(mm)
Dimensions

What Materials Can Be Shredded?

Shredded materials

Advantages At A Glance

Advantages
Dirve System
Intelligent Control System
Intelligent Feeding System
Adjustable Cutting Unit
Cutting System
High-Efficiency Discharge System
Screening System
Intelligent Control System
Intelligent Feeding System
Adjustable Cutting Unit
Cutting System
High-Efficiency Discharge System
Screening System
Dirve System

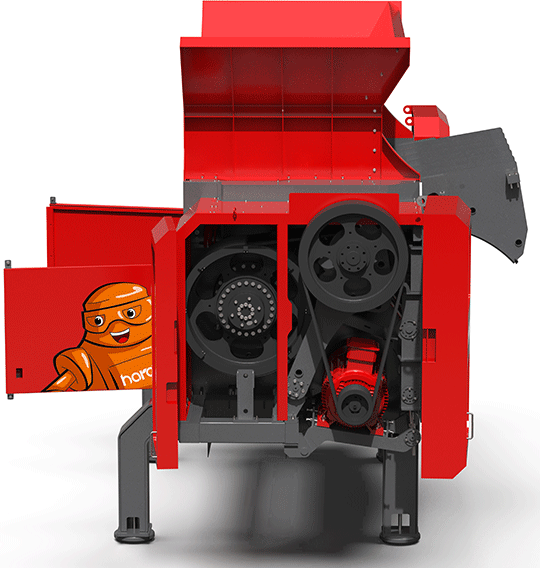

Dirve System
The drive system features high inertia and high torque to deliver powerful performance. It is equipped with overload protection, ensuring safety and reliability while effectively mitigating risks such as abnormal damage.

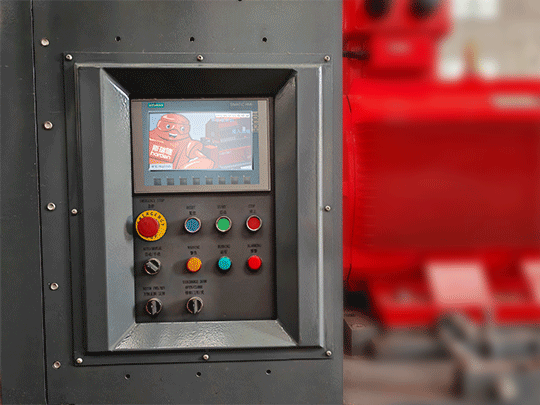

Intelligent Control System
The system incorporates intelligent temperature control, automatic lubrication, digital frequency control, and other advanced features to provide more efficient, intelligent, and user-friendly operation. Equipped with an intelligent on-site control system, it enables one-touch start and stop via the control panel.

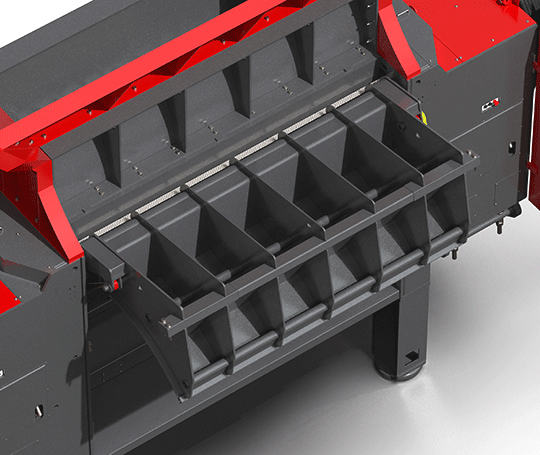

Intelligent Feeding System
The intelligent feeding logic monitors the output pushing force and knife shaft load current in real time, utilizing closed-loop control to prevent material jamping. The system continuously optimizes the feeding process, ensuring the equipment operates at maximum feed capacity, significantly enhancing production efficiency

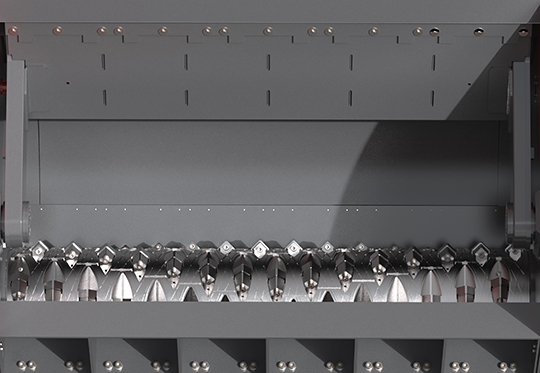

Adjustable Cutting Unit
The cutting gap can be quickly adjusted without the need to open the discharge door, simply by adjusting the bolts at designated positions.

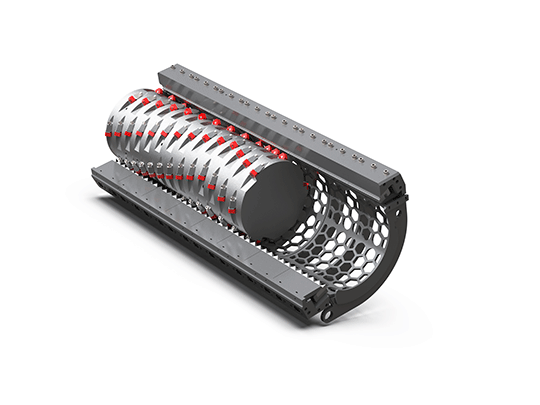

Cutting System
The cutting system features a high-precision spindle configuration, with all contact surfaces exposed to crushing made from high-wear, high-strength alloy steel, enabling the processing of materials with varying properties.

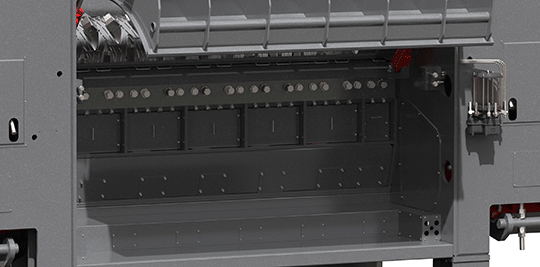

High-Efficiency Discharge System
The open-type discharge door design, coupled with one-touch hydraulic drive operation, allows for the rapid removal of foreign objects and quick restoration of production.

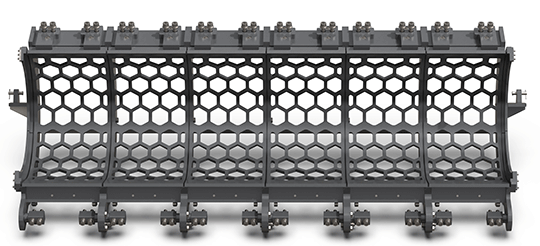

Screening System
The system utilizes different screen meshes to achieve various sizes of output material. With a maximized discharge area, it employs highly wearresistant alloy steel screen meshes for extended durability. The modular design of the screen panels facilitates easier replacement, enhancing operational efficiency in waste shredding applications.

Our Case

Our Case

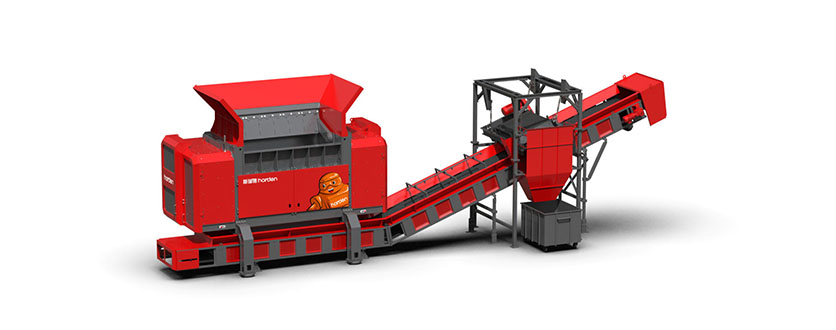

一步式全图

Specific Parameter

  • SG3000MP
    Dimensions (L*W*H)(mm)
    6406*3253*4988
    Total Weight (kg)
    35000
    Cutting Length (mm)
    3000
    Rotor Speed (rpm)
    133
    Cutting System Type
    P
    Number of Rotor Knives (pcs)
    75/90
    Number of Counter Knives (pcs)
    12
    Screens (pcs)
    6
    Power (kW)
    2*200
    Hydraulic Power (kW)
    15
    Drive Control
    Frequency Converter
    View More
Download the brochure
One-Step Shredder-SG3000MP.pdf
