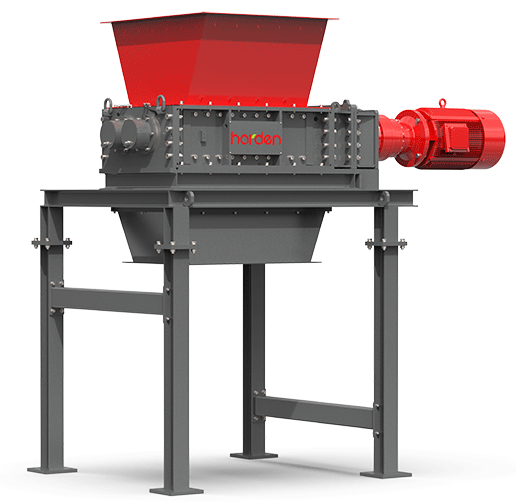

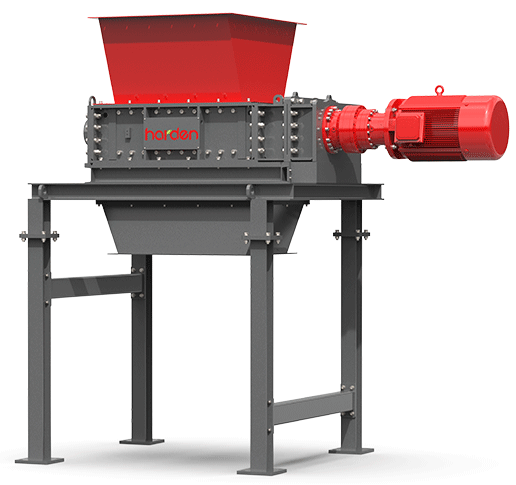

Two Shaft Shredder TS Series - Medium Duty

TS series double shaft shredder is mainly used in light-loading crushing and coarse crushing occasions. Two sels of shafts withblades run relalively to form shearing force. This series shredder has a compact struclure and the cutling chamber is driven bvone set of motor and a reducer which drive two sels of shafts to run simullaneously.

What Distinguishes The
Two Shaft Shredder TS Series - Medium Duty

What distinguishes

1-10t/h

Maximum Throughput Capacity

50mm

Particle Size

75-45kw

Motor Power

What Materials Can Be Shredded?

Shredded materials

Waste Wood
Paper & Cardboard
Confidential Destruction

Advantages At A Glance

Advantages

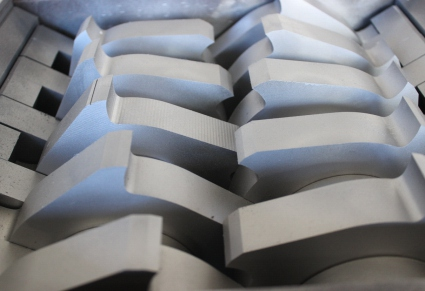

High Hardness Cutters

One set of power drive and two shafts with compact structure. Imported blades material from Europe and it is not easy to be broken.The shaft which is processed by multiple heating treatmentand fine grinding

Professional Design of Cutting Chamber

Automatic overload protection to realize positive and negative rotation

Dynamic Speed Control System

Bearing adopts automatic lubrication and multiple sealing, shreds the material which contains high dust or high moisture content

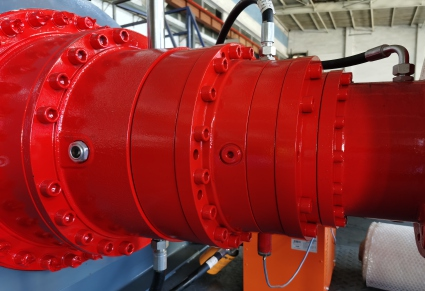

Transmission Parts Protection

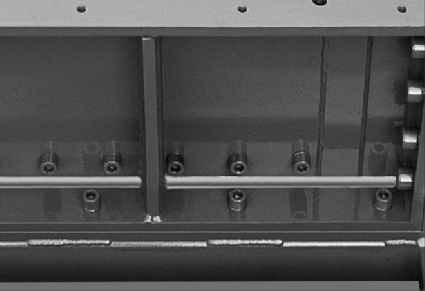

Dustproof maze | Isolation Protection

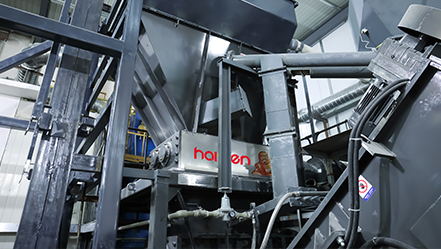

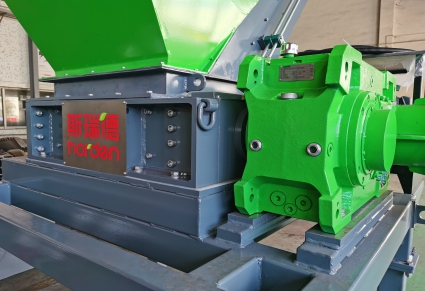

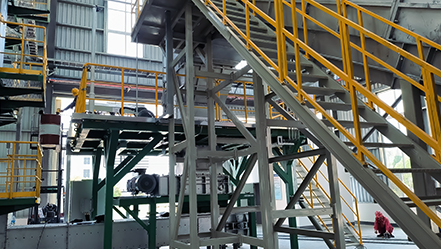

Our Case

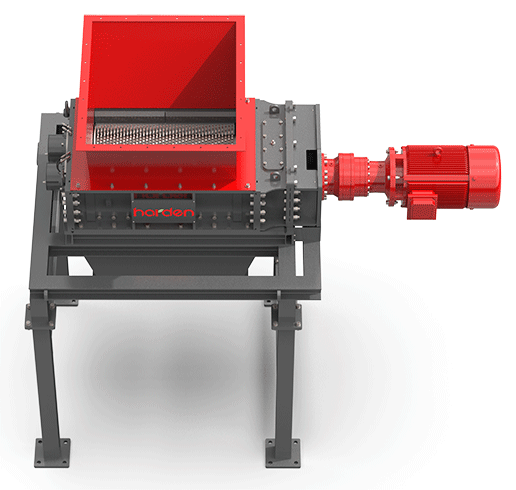

Specific Parameter

TS303

Dimensions(L*W*H)

1473*872*1603

Total Weight(kg)

550

Cutting Chamber(L1*W1)

324*360

Number of Shaft(pcs)

2

Shaft Speed(rpm)

19

Thickness of Rotating Knives(mm)

10/30

Number of Roating Knives(pcs)

10/33

Drive System

Electric

Power Rating(kw)

7.5

Electric Control Cabinet System(mm)

500*600*300

View More
TS508

Dimensions(L*W*H)

2100*1600*2185

Total Weight(kg)

2680

Cutting Chamber(L1*W1)

839*580

Number of Shaft(pcs)

2

Shaft Speed(rpm)

18/26

Thickness of Rotating Knives(mm)

10/20/30

Number of Roating Knives(pcs)

28/42/86

Drive System

Electric

Power Rating(kw)

30

Electric Control Cabinet System(mm)

500*1400*300

View More
TS612

Dimensions(L*W*H)

3118*2152*2874

Total Weight(kg)

5000

Cutting Chamber(L1*W1)

1200*600

Number of Shaft(pcs)

2

Shaft Speed(rpm)

14/26

Thickness of Rotating Knives(mm)

20/30/60

Number of Roating Knives(pcs)

20/30/60

Drive System

Electric

Power Rating(kw)

45

Electric Control Cabinet System(mm)

500*1400*300

View More

Perfect Solid Waste Solution

Custom-made solution

For special requirements, we offer the custom-made solution!
