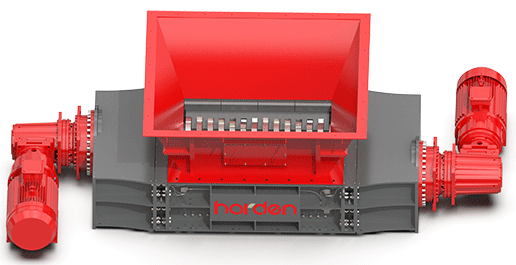

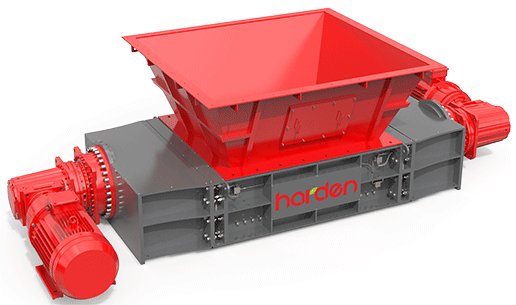

Two Shaft Shredder TD Series - Motor Drive

TD serles double shaft shredder is mainly used in high-loading crushing and coarse crushing occaslons.

Two sets of shalts withblades run relatively to form shearing force.Each cuting shat of this series shredder is driven independently by a motorcombined with reducer, and the two shafts turned forward orreversed independently.

What Distinguishes The
Two Shaft Shredder TD Series

What distinguishes

3-30t/h

Maximum Throughput Capacity

50-120mm

Particle Size

45*2-132*2kw

Motor Power

What Materials Can Be Shredded?

Shredded materials

Textile & Leather Scraps
MSW
Decoration Waste
Bullky Waste
Waste Tire

Advantages At A Glance

Advantages

The shaft offers large torque to break a variety of complex material

lmported blades material from Europe and it is not easy to be broken. The shaft which is processed by multiple heating treatment and fine grinding

Automatic overload protection to realize positive and negative rotation

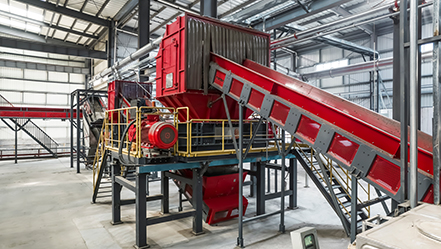

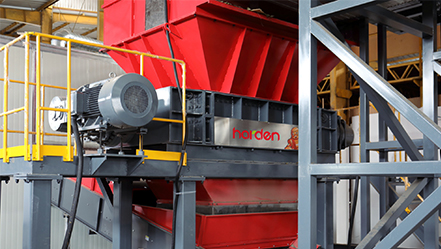

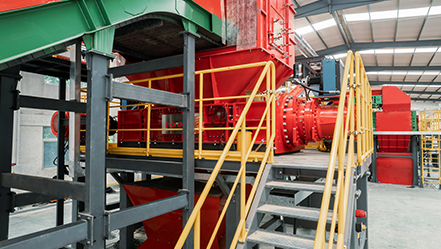

Our Case

Specific Parameter

TD612

Dimensions(L*W*H)(mm)

4370*2392*3475

Total Weight(kg)

6940

Cutting Chamber(L1*W1)

1200*600

Number of Shaft(pcs)

2

Shaft Speed(rpm)

16/26

Thickness of Rotating Knives(mm)

30/40/60

Number of Rotating Knives(pcs)

20/30/40

Drive System

Electric

Power Rating(kw)

2*45

Electric Control Cabinet System(mm)

1000*1800*600

View More
TD912

Dimensions(L*W*H)(mm)

4824*2773*3245

Total Weight(kg)

10800

Cutting Chamber(L1*W1)

1200*900

Number of Shaft(pcs)

2

Shaft Speed(rpm)

10/13/20

Thickness of Rotating Knives(mm)

30/40/60

Number of Rotating Knives(pcs)

20/30/40

Drive System

Electric

Power Rating(kw)

2*75

Electric Control Cabinet System(mm)

1400*2200*800

View More
TD919

Dimensions(L*W*H)(mm)

6428*2719*3361

Total Weight(kg)

14400

Cutting Chamber(L1*W1)

1900*900

Number of Shaft(pcs)

2

Shaft Speed(rpm)

10

Thickness of Rotating Knives(mm)

50

Number of Rotating Knives(pcs)

38

Drive System

Electric

Power Rating(kw)

2*75

Electric Control Cabinet System(mm)

1400*2200*800

View More
TD1016

Dimensions(L*W*H)(mm)

6720*3571*4257

Total Weight(kg)

16800

Cutting Chamber(L1*W1)

1600*1000

Number of Shaft(pcs)

2

Shaft Speed(rpm)

12/21

Thickness of Rotating Knives(mm)

30/40/50/60

Number of Rotating Knives(pcs)

26/32/40/52

Drive System

Electric

Power Rating(kw)

2*110

Electric Control Cabinet System(mm)

1400*2200*800

View More
TD1216E

Dimensions(L*W*H)(mm)

5069*3430*4745

Total Weight(kg)

18200

Cutting Chamber(L1*W1)

1600*1200

Number of Shaft(pcs)

2

Shaft Speed(rpm)

12

Thickness of Rotating Knives(mm)

40/60

Number of Rotating Knives(pcs)

26/40

Drive System

Electric

Power Rating(kw)

2*132

Electric Control Cabinet System(mm)

1200*2000*600

View More
TD1216H

Dimensions(L*W*H)(mm)

5920*3494*6350

Total Weight(kg)

22000

Cutting Chamber(L1*W1)

1600*1200

Number of Shaft(pcs)

2

Shaft Speed(rpm)

10/13

Thickness of Rotating Knives(mm)

40/60

Number of Rotating Knives(pcs)

26/40

Drive System

Electric

Power Rating(kw)

2*132/2*160

Electric Control Cabinet System(mm)

1400*2200*800

View More

Perfect Solid Waste Solution

Custom-made solution

For special requirements, we offer the custom-made solution!
