In modern fuel-preparation lines, the RDF shredder performs primary size reduction to ensure stable material flow and efficient downstream sorting. Most systems target particle sizes of 150–300 mm at the primary stage, while some projects require finer 80–150 mm outputs depending on separation needs.

In advanced or one-step configurations, RDF may be processed to below 50 mm or even 30 mm to meet stricter combustion, feeding, or kiln-injection requirements.

With more industries seeking to replace fossil fuels with waste-derived alternatives, high-performance RDF shredding has become essential for achieving reliable, kiln-ready fuel.

I. Why the RDF Shredder Is the Foundation of Fuel Preparation

A well-designed RDF shredding stage determines whether mixed waste can be transformed into a stable, high-calorific-value fuel. The shredder’s ability to homogenize materials directly affects drying behavior, feeding stability, and combustion predictability.

Key Functions of an RDF Shredder

• Waste Homogenization
The shredder processes a wide range of materials—from MSW and industrial waste to packaging waste, textiles, wood, and lightweight plastics—and converts them into a size-controlled material stream.

• Particle Size Control for Separation
By producing consistent coarse particles, the RDF shredding stage enhances the efficiency of air classification, metal removal, and screening.

• Improved Surface Area for Combustion
Increased surface area accelerates drying and supports stable thermal performance in kilns and boilers.

High-torque dual-shaft or four-shaft RDF shredders are commonly used for this stage due to their ability to handle contaminants, bulky items, and tough materials with minimal downtime.

II. From RDF to High-Quality SRF: The Role of Secondary Shredding

Once RDF is produced, some facilities upgrade it into SRF (Solid Recovered Fuel)—a higher-grade, more precisely refined fuel that meets strict industrial specifications. While the RDF shredder handles coarse reduction, SRF requires fine shredding, achieved through a secondary shredding stage.

Why SRF Shredding Matters

· Produces 30–50 mm or <30 mm particles for cement kiln injection

· Raises bulk density and ensures consistent pneumatic feeding

· Reduces variability in calorific value and moisture

· Helps meet CEN/TC 343 classification for SRF quality

· Improves overall combustion stability in industrial systems

Harden’s fine shredders are engineered to control particle uniformity through optimized rotor speed, cutter geometry, and adjustable screening modules.

III. Harden Machinery Ltd.: Engineering Reliable RDF/SRF Shredding Systems

Harden Machinery Ltd. provides robust and finely engineered shredding systems suitable for both high-throughput RDF processing and precision SRF upgrading.

The design focus across Harden equipment emphasizes durability, efficiency, and long-term operational stability. Harden also offers a one-step shredding solution that reduces over 90% of common solid waste to below 50 mm in a single pass, minimizing footprint and operating costs.

This compact yet high-performance design enables simple, efficient, and cost-effective RDF production.

Advantages of Harden RDF Shredders

• High Torque and Wear Resistance
Reinforced shafts and high-strength cutters withstand demanding waste streams, including textiles, rubber, and metal-bearing materials.

• High Throughput and Continuous Operation
Harden shredders maintain stable performance in continuous-duty production lines, ensuring reliable fuel output.

• Precision Fuel Refinement
With calibrated screens and refined cutter layouts, SRF fine shredders deliver controlled particle sizes and high-yield output.

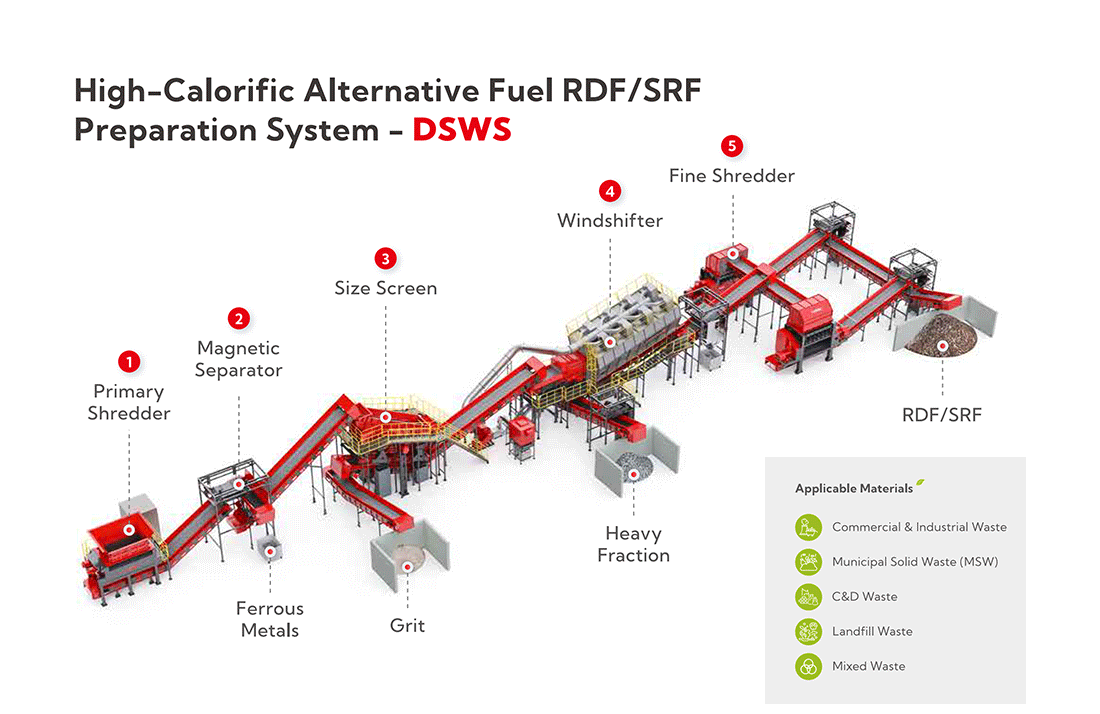

• Integrated Multi-Stage Systems
Harden designs systems where RDF shredding and SRF refining work seamlessly to produce homogeneous, kiln-ready alternative fuels.

These features make Harden shredding solutions widely used in cement co-processing, WtE projects, industrial fuel lines, and large-scale integrated waste treatment plants.

IV. Performance and Economic Benefits of Quality Shredding

Selecting a well-built RDF shredder—and optionally an SRF fine shredder—offers significant operational and economic advantages.

Key Benefits

• Reduced Operating Costs
Durable cutter materials and anti-jamming mechanisms extend service life and reduce maintenance downtime.

• Higher Fuel Value & Better Yield
RDF that is properly shredded and separated can be further refined into SRF with a higher calorific value, improving fuel pricing and energy efficiency.

• System-Wide Reliability
A uniform RDF particle stream improves the stability of conveyors, classifiers, dosing equipment, and all downstream processes.

• Enhanced Combustion Performance
Consistent particle size leads to predictable feeding and steady heat release—critical for cement kilns and high-temperature boilers.

Shredding is the backbone of RDF and SRF production. A reliable, high-torque RDF shredder ensures that mixed waste can be transformed into a stable, energy-rich fuel stream. When paired with precision fine shredding for SRF production, the system delivers superior fuel quality, higher calorific value, and dependable performance for waste-to-energy and industrial applications.

With advanced engineering and proven long-term durability, Harden Machinery Ltd. provides RDF and SRF shredding systems that enable consistent fuel production and support sustainable waste-to-energy operations.
