The Hidden Costs of Coarse Shredding in Plastic Recovery

At first glance, shredding waste plastics appears straightforward: reduce large volumes to manageable pieces. In practice, however, conventional coarse shredding introduces inefficiencies that cascade through the entire recycling chain.

Consider the thermal dynamics: Mixtures of oversized chunks exceeding 150mm alongside fines create uneven heat transfer in reactors, slashing reaction yields and driving up energy consumption. Worse, entangled films or bulky sheets prone to coking and clogging force unplanned shutdowns, disrupting continuous operations. Moreover, multi-stage setups suffer from low throughput and high power draw, falling short of the tens-of-thousands-of-tons-per-year scales required for viable chemical recycling.

These issues transform what should be a streamlined pathway into a fragmented process. Coarse shreds—irregular in size and shape—act as a latent liability, compromising the precision needed for scalable, cost-effective plastic valorization. The key to unlocking efficiency? Precision shredding that prioritizes uniformity and adaptability from the outset.

Breaking Through: Industrial-Grade Precision Shredding for Low-Value Plastics

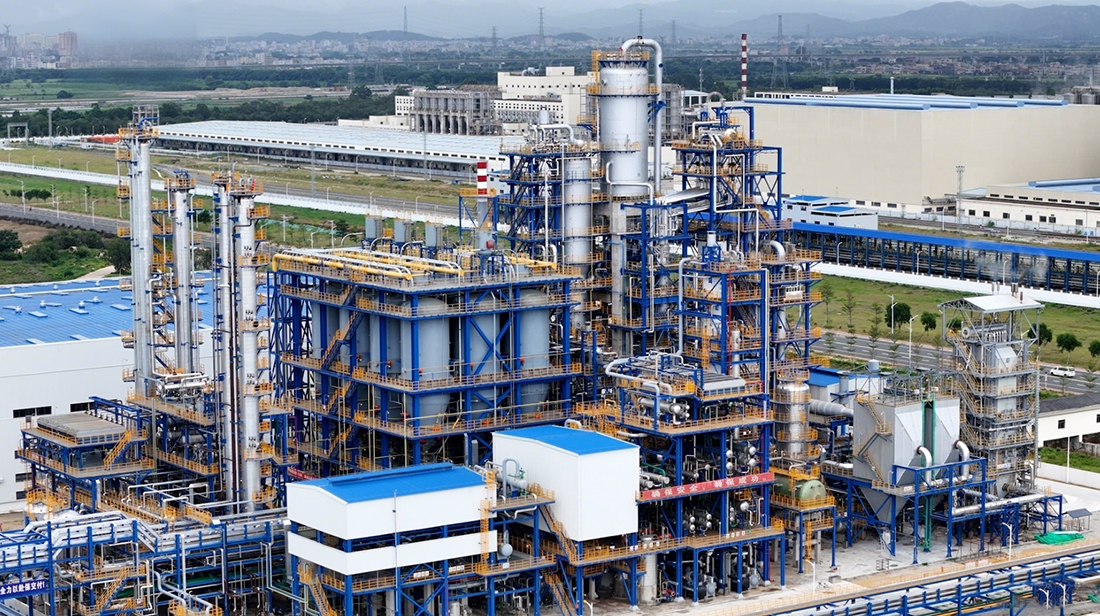

In a landmark low-carbon circular materials project in Shandong Province, stakeholders recognized that advancing chemical recycling demanded a holistic upgrade across raw material sourcing, pre-treatment, and core conversion technologies.

The initiative embraces a broad spectrum of feedstocks, from post-consumer PE and PP films to industrial scraps, municipal solid waste (MSW), and even aged landfill residues. Unlike mechanical recycling, chemical routes offer remarkable tolerance: they accommodate contaminated, multicolored, or composite plastics, converting nearly any low-value stream into monomers or fuels. This inclusivity paves the way for true closed-loop systems, but only if pre-treatment delivers consistent, process-ready material.

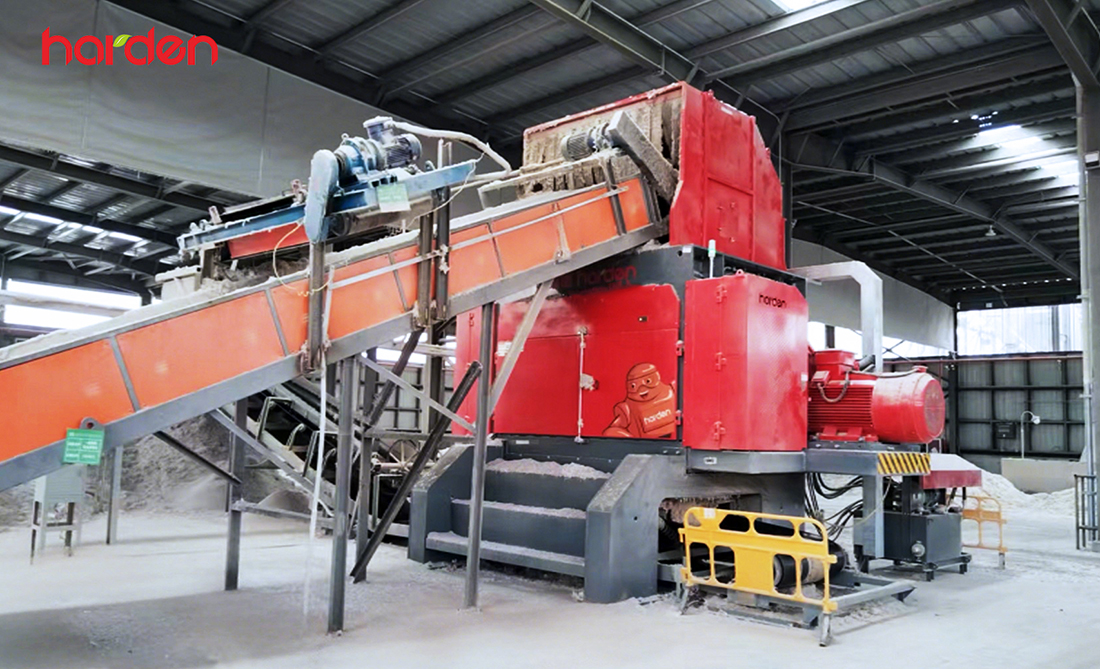

Here, the project's shredding pre-treatment emerged as the linchpin. Confronting the challenges of tangled PE agricultural films and heterogeneous industrial rejects, the team deployed Harden's precision shredding solution for waste plastics. This system integrates a high-torque, adjustable drive with advanced sizing screens, enabling targeted reduction of diverse low-value plastics. The result? A stable, high-volume pre-process that feeds pyrolysis reactors with optimal homogeneity, enhancing overall economic viability.

The Core Advantages: 20mm Uniformity with 95% Yield

At the heart of Harden's technology lies a suite of engineered features that deliver breakthrough performance:

· Adjustable Screening System: Precision controls ensure output sizes within a customizable 20-40mm range, achieving over 95% conformance rates. This meets the stringent feed specifications of various pyrolysis configurations, minimizing variability and downstream adjustments.

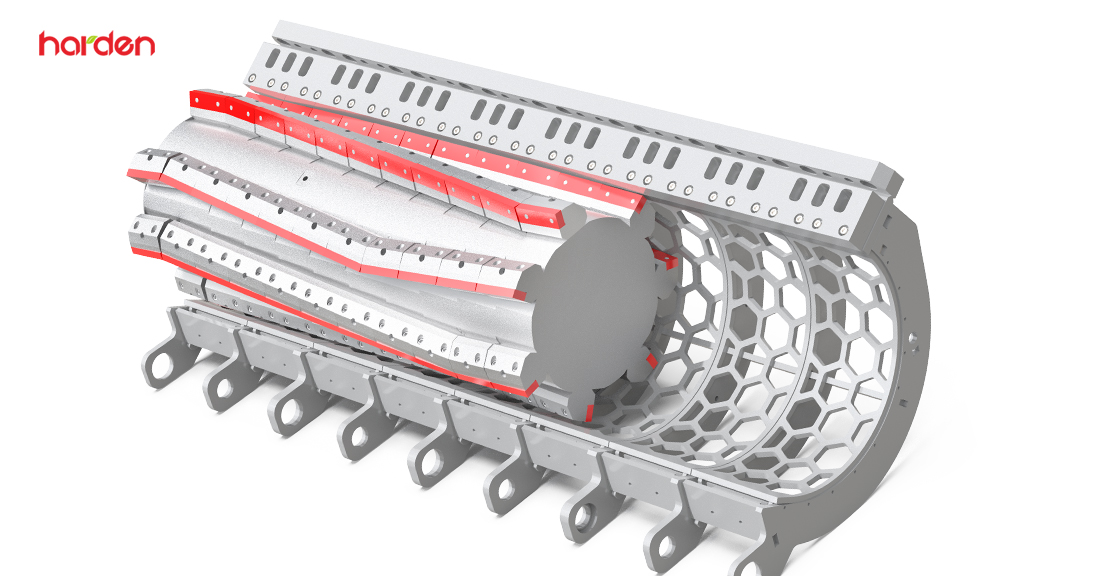

· Multi-Edge High-Efficiency Blades: Each blade features four cutting surfaces, extending service life and curtailing per-ton operating costs. This design sustains sharp performance across abrasive or resilient plastics, reducing replacement frequency.

· Variable Torque Drive System: Robust and adaptable, it handles the full spectrum of PE, PP, and mixed morphologies—from flexible entanglements to rigid chunks—while maintaining seamless, uninterrupted runs.

· Adjustable Shear Gaps: Tailored to material properties and target outputs, these optimize shredding dynamics, balancing energy use with throughput. The system reliably sustains 20 tons per hour, aligning with the demands of large-scale recycling facilities.

These elements converge to produce a homogeneous 20mm feedstock, free from the inconsistencies that plague traditional methods. By mitigating heat transfer issues and clogging risks, Harden's approach not only boosts reactor efficiency but also supports modular scaling for industrial deployment.

Project Impact: Scaling to 100,000 Tons Annually

Upon full commissioning, the Shandong project is poised to process over 100,000 tons of waste plastics yearly, markedly elevating regional resource recovery rates. This throughput will offset more than 100,000 tons of CO₂ emissions annually, advancing China's dual-carbon objectives and "zero-waste city" initiatives. Economically, it projects revenues exceeding 400 million RMB, catalyzing green industrial clusters and fostering job growth in sustainable materials.

In essence, this initiative exemplifies how targeted pre-treatment can bridge the gap between innovation and implementation. Harden's precision shredding does not merely fragment plastics—it refines them into a standardized input that empowers chemical recycling at a commercial scale.

Forging the Path to Industrial Plastic Circularity

The journey toward waste plastic circularity is a contest of accuracy and throughput, where coarse approximations give way to engineered precision. Harden Machinery Ltd. stands at this intersection, offering industrial-grade shredding pre-treatment that harmonizes output quality, energy efficiency, and versatility. With 20mm uniform shreds as its hallmark, this technology equips processors to meet the rigors of chemical recovery, turning low-value discards into high-value assets.
